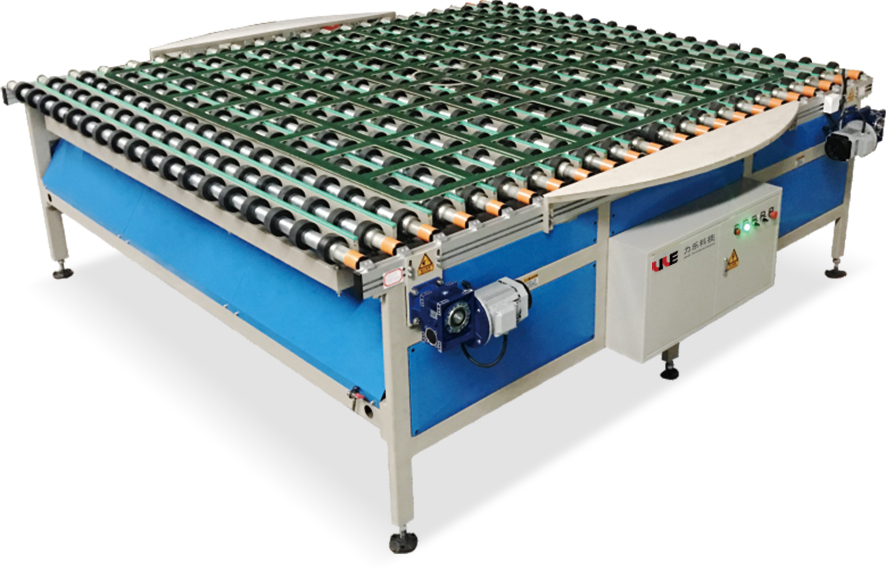

辊台旋转调头机

Table rotating turning machine

简单描述 _Simple Description:

此设备是针对大规格条形产品根据生产工艺要求在进入主体设备 ( 窑炉或干燥窑 ) 需调头 90°而设计。工作时，托板和导槽同时升起，托板在导槽上平稳旋转 90°，下降到传动辊棒，然后输送到下一设备上。本设备相较于传统调头机优点在于：产品在托板和导槽同时升起 , 转向时托板在导槽上平稳滑动旋转， 不会导致因产品规格大、坯体较重在而变形或产生裂纹烂砖现象。导槽为高密度耐磨硬塑料。

This equipment is designed for large-sized strip products that need to be turned 90° into the main equipment (kiln or drying kiln) according to the production process requirements. During work, the pallets and guides rise at the same time. The pallet rotates smoothly on the guide trough by 90° , drops to the transmission roller bar, and then transports to the next equipment. The advantage of this equipment over traditional U-turn machines is that the product rises at the same time as the pallets and guides are raised.When turning, the pallets slide smoothly on the guides and do not cause distortion due to large product sizes or heavy billets. Cracked bricks are produced. The guide groove is a high-density wear-resistant hard plastic.
